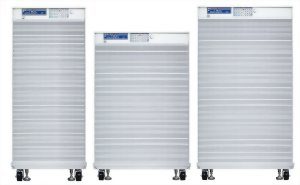

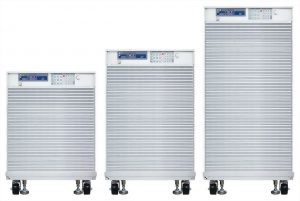

5VP 系列大功率可程式設計直流負載

5VP 系列包括高功率負載櫃系統為 60V、 600V 或 1000V 輸入範圍的支援。

所有負載都共用一個共同的和直觀的使用者介面。5VP 系列是高效綜合的直流負載系統，從單一的使用者控制台或遠端控制介面操作。

有 24 個不同 5VP 系列型號從 5kW 60kW 到。為更高的功率要求，可以輕鬆地平行 5VP 模型。

5VP 系列直流負載有關的問題，請與我們聯繫。

自我調整功率 5VP 系列荷載是為廣泛的行業非常高功率直流測試及產品開發應用。5VP 系列機型支援電壓 60V，600V 或 1000V 和非常適合用於測試大型電池系統、高功率 ac/DC 轉換器和太陽能和風能電力應用程式中發現的能源存儲系統。他們靈活的 V-運行特性曲線跨度範圍的電壓和電流組合在高功率水準。所有 5VP 系列機型都具有更高的精確度和決議以較低的電壓和電流的水準，進一步提高其效能低範圍模式。

5VP 系列套一共有 24 個不同型號提供廣泛變化的可能的電壓、電流和功率組合。

5VP Series Models – 60 Vdc

Model	5VP05-100		5VP10-100		5VP15-100		5VP20-100
OPERATING RANGES
Power Ranges	0-0.5 kW	0-5 kW	0-1.0 kW	0-10 kW	0-1.5 kW	0-15 kW	0-2.0 kW	0-20 kW
Current Ranges	0 – 100 A	0 – 1000 A	0 – 100 A	0 – 1000 A	0 – 100 A	0 – 1000 A	0 – 100 A	0 – 1000 A
Voltage Range	0 – 60 V
Minimum Voltage	0.1 V @ 100 A	0.7 V @ 1000 A	0.1 V @ 100 A	0.7 V @ 1000 A	0.1 V @ 100 A	0.7 V @ 1000 A	0.1 V @ 100 A	0.7 V @ 1000 A
OPERATING MODES	Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
PROTECTION	Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
DYNAMIC OPERATION
T high & T low	0.150-9.999/…/9999ms		0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
Slew Rate	24mA-1.5A/μs	240mA-15A/μs	66.4mA-4.15A/μs	664mA-41.5A/μs	66.4mA-4.15A/μs	664mA-41.5A/μs	66.4mA-4.15A/μs	664mA-41.5A/μs
METERING
Voltage Range	0 – 6 V	6 – 60 V	0 – 6 V	6 – 60 V	0 – 6 V	6 – 60 V	0 – 6 V	6 – 60 V
Current Range	0 – 100 A	0 – 1000 A	0 – 100 A	0 – 1000 A	0 – 100 A	0 – 1000 A	0 – 100 A	0 – 1000 A
Power Range	0 – 500 W	0 – 5000 W	0 – 1000 W	0.600 – 10 kW	0 – 1500 W	600 – 15000 W	0 – 2000 W	0.6 – 20 kW
SHORT CIRCUIT CURRENT	1000 A
AC INPUT & PHYSICAL SPECIFICATIONS
AC Input/Cooling	115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
Dimensions (HxWxD)	577 x 647 x 766 mm 22.7″ x 25.5″ x 30.2″				736 x 647 x 766 mm 29″ x 25.5″ x 30.2″		889 x 647 x 766mm 29″ x 25.5″ x 35″
Weight (Net)	100kg / 220.5 lbs		130kg / 286.6 lbs		170kg / 374.8 lbs		220kg / 485.0 lbs

Model	5VP25-100		5VP30-100		5VP05-16		5VP10-32
OPERATING RANGES
Power Ranges	0-2.5 kW	0-25 kW	0-3.0 kW	0-30 kW	0-0.5 kW	0-5 kW	0-1.0 kW	0-10 kW
Current Ranges	0 – 100 A	0 – 1000 A	0 – 100 A	0 – 1000 A	0 – 16 A	0 – 160 A	0 – 32 A	0 – 320 A
Voltage Range	0 – 60 V
Minimum Voltage	0.1 V @ 100 A	0.7 V @ 1000 A	0.1 V @ 100 A	0.7 V @ 1000 A	20 V @ 160 A		20 V @ 320 A
OPERATING MODES	Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
PROTECTION	Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
DYNAMIC OPERATION
T high & T low	0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
Slew Rate	66.4mA-4.15A/μs	664mA-41.5A/μs	66.4mA-4.15A/μs	664mA-41.5A/μs	12.8mA-800mA/μs	128mA-8A/μs	25.6mA-1.6A/μs	256mA-16A/μs
METERING
Voltage Range	0 – 6 V	6 – 60 V	0 – 6 V	6 – 60 V	0 – 6 V	60 – 600 V	0 – 60 V	60 – 600 V
Current Range	0 – 100 A	100 – 1000 A	0 – 100 A	100 – 1000 A	0 – 16 A	16 – 160 A	0 – 32 A	32 – 320 A
Power Range	0 – 2500 W	0 – 2500 W	0 – 3000 W	0 – 30000 W	0 – 500 W	0 – 5000 W	0 – 1000 W	0 – 10000 W
SHORT CIRCUIT CURRENT	1000 A				160 A		320 A
AC INPUT & PHYSICAL SPECIFICATIONS
AC Input/Cooling	115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
Dimensions (HxWxD)	1048 x 647 x 766 mm 22.7″ x 25.5″ x 30.2″		1201 x 647 x 766 mm 47.3″ x 25.5″ x 30.2″		577 x 647 x 766 mm 29″ x 25.5″ x 30.2″		577 x 647 x 766 mm 29″ x 25.5″ x 30.2″
Weight (Net)	280kg / 617.3 lbs		340kg / 749.6 lbs		100kg / 220.5 lbs		130kg / 286.6 lbs

5VP Series Models – 600 Vdc

Model	5VP15-48		5VP20-64		5VP25-80		5VP30-96
OPERATING RANGES
Power Ranges	0-1.5 kW	0-15 kW	0-2.0 kW	0-20 kW	0-2.5 kW	0-25 kW	0-3.0 kW	0-30 kW
Current Ranges	0 – 48 A	0 – 480 A	0 – 64 A	0 – 640 A	0 – 80 A	0 – 800 A	0 – 96 A	0 – 960 A
Voltage Range	0 – 600 V
Minimum Voltage	20 V @ 480 A		20 V @ 640 A		20 V @ 800 A		20 V @ 960 A
OPERATING MODES	Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
PROTECTION	Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
DYNAMIC OPERATION
T high & T low	0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
Slew Rate	38.4mA-2.4A/μs	384mA-24A/μs	51.2mA-3.2A/μs	512mA-32A/μs	64mA-4A/μs	640mA-40A/μs	76.8mA-4.8A/μs	768mA-48A/μs
METERING
Voltage Range	0 – 60 V	60 – 600 V	0 – 60 V	60 – 600 V	0 – 60 V	60 – 600 V	0 – 60 V	60 – 600 V
Current Range	0 – 48 A	48 – 480 A	0 – 64 A	64 – 640 A	0 – 80 A	80 – 800 A	0 – 96 A	96 – 960 A
Power Range	0 – 1500 W	0 – 15000 W	0 – 2000 W	0 – 20000 W	0 – 2500 W	0 – 25000 W	0 – 3000 W	0 – 30000 W
SHORT CIRCUIT CURRENT	480 A
AC INPUT & PHYSICAL SPECIFICATIONS
AC Input/Cooling	115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
Dimensions (HxWxD)	73 6 x 647 x 766mm 29″ x 25.5″ x 30.2″		889 x 647 x 766mm 5″ x 25.5″ x 30.2″		1048 x 647 x 766mm 41.3″ x 25.5″ x 30.2″		1201 x 647 x 766mm 47.3″ x 25.5″ x 30.2″
Weight (Net)	170kg / 374.8 lbs		220kg / 485.0 lbs		280kg / 617.3 lbs		340kg / 749.6 lbs

Model	5VP50-21		5VP60-24		5VP50-50		5VP60-60
OPERATING RANGES
Power Ranges	0-5.0 kW	0-50 kW	0-6.0 kW	0-60 kW	0-5.0 kW	0-50 kW	0-6.0 kW	0-60 kW
Current Ranges	0 – 21 A	0 – 210 A	0 – 24 A	0 – 240 A	0 – 52.5 A	0 – 500 A	0 – 60 A	0 – 600 A
Voltage Range	0 – 600 V
Minimum Voltage	20 V @ 210 A		20 V @ 240 A		20 V @ 500 A		20 V @ 600 A
OPERATING MODES	Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
PROTECTION	Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
DYNAMIC OPERATION
T high & T low	0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
Slew Rate	16.8mA-1.05A/us	168mA-10.5A/us	19.2mA-1.2A/us	192mA-12A/us	42mA-2.625A/us	420mA-26.25A/us	48mA-3A/us	480mA-30A/us
METERING
Voltage Range	0 – 60 V	60 – 600 V	0 – 60 V	60 – 600 V	0 – 100 V	100 – 1000 V	0 – 100 V	100 – 1000 V
Current Range	0 – 21 A	21 – 210 A	0 – 24 A	24 – 240 A	0 – 52.5 A	52.5 – 500 A	0 – 60 A	60 – 600 A
Power Range	0 – 5 kW	0 – 50 kW	0 – 6 kW	0 – 60 kW	0 – 5 kW	0 – 50 kW	0 – 6 kW	0 – 60 kW
SHORT CIRCUIT CURRENT	210 A		240 A		500 A		600 A
AC INPUT & PHYSICAL SPECIFICATIONS
AC Input/Cooling	115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
Dimensions (HxWxD)	1360 x 853 x 766 mm 53.6″ x 33.6″ x 30.2″		1513 x 853 x 766 mm 59.6″ x 33.6″ x 30.2″		1360 x 853 x 766 mm 53.6″ x 33.6″ x 30.2″		1513 x 853 x 766 mm 59.6″ x 33.6″ x 30.2″
Weight (Net)	510kg / 1124.4 lbs		630kg / 1388.9 lbs		510kg / 1124.4 lbs		630kg / 1388.9 lbs

5VP SERIES MODELS – 1000 VDC

Model	5VP05-05		5VP10-10		5VP15-15		5VP20-20
OPERATING RANGES
Power Ranges	0-0.5 kW	0-5 kW	0-1.0 kW	0-10 kW	0-1.5 kW	0-15 kW	0-2.0 kW	0-20 kW
Current Ranges	0 – 5 A	0 – 50 A	0 – 10 A	0 – 100 A	0 – 15 A	0 – 150 A	0 – 20 A	0 – 200 A
Voltage Range	0 – 1000 V
Minimum Voltage	20 V @ 50 A		20 V @ 100 A		20 V @ 150 A		20 V @ 200 A
OPERATING MODES	Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
PROTECTION	Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
DYNAMIC OPERATION
T high & T low	0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
Slew Rate	0.004A-0.25A/μs	0.04A-2.5A/μs	0.008A-0.5A/μs	0.08A-5A/μs	0.012A-0.75A/μs	0.12A-7.5A/μs	0.016A-1A/μs	0.16A-10A/μs
METERING
Voltage Range	0 – 100 V	100 – 1000 V	0 – 100 V	100 – 1000 V	0 – 100 V	100 – 1000 V	0 – 100 V	100 – 1000 V
Current Range	0 – 5 A	5 – 50 A	0 – 10 A	10 – 100 A	0 – 15 A	15 – 150 A	0 – 20 A	20 – 200 A
Power Range	0 – 0.55 kW	0 – 5 kW	0 – 1.0 kW	0 – 10 kW	0 – 1.5 kW	0 – 15 kW	0 – 2.0 kW	0 – 20 kW
SHORT CIRCUIT CURRENT	50 A		100 A		150 A		200 A
AC INPUT & PHYSICAL SPECIFICATIONS
AC Input/Cooling	115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
Dimensions (HxWxD)	577 x 647 x 766 mm 29″ x 25.5″ x 30.2″		736 x 647 x 766 mm 29″ x 25.5″ x 30.2″		736 x 647 x 766 mm 29″ x 25.5″ x 30.2″		889 x 647 x 766 mm 29″ x 25.5″ x 30.2″
Weight (Net)	100kg / 220.5 lbs		130kg / 286.6 lbs		170kg / 374.8 lbs		220kg / 485.0 lbs

Model	5VP25-25		5VP30-30		5VP35-35		5VP40-40
OPERATING RANGES
Power Ranges	0-2.5 kW	0-25 kW	0-3.0 kW	0-30 kW	0-3.5 kW	0-35 kW	0-4.0 kW	0-40 kW
Current Ranges	0 – 25 A	0 – 250 A	0 – 30 A	0 – 300 A	0 – 35 A	0 – 350 A	0 – 40 A	0 – 400 A
Voltage Range	0 – 1000 V
Minimum Voltage	20 V @ 250 A		20 V @ 300 A		20 V @ 350 A		20 V @ 400 A
OPERATING MODES	Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
PROTECTION	Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
DYNAMIC OPERATION
T high & T low	0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
Slew Rate	0.02A-1.25A/μs	0.2A-12.5A/μs	0.024A-1.5A/μs	0.24A-15A/μs	0.028A-1.75A/μs	0.28A-17.5A/μs	0.032A-2A/μs	0.32A-20A/μs
METERING
Voltage Range	0 – 100 V	100 – 1000 V	0 – 100 V	100 – 1000 V	0 – 100 V	100 – 1000 V	0 – 100 V	100 – 1000 V
Current Range	0 – 25 A	25 – 250 A	0 – 30 A	30 – 300 A	0 – 35 A	35 – 350 A	0 – 40 A	40 – 400 A
Power Range	0 – 2500 W	0 – 25000 W	0 – 3000 W	0 – 30000 W	0 – 3500 W	0 – 35000 W	0 – 4000 W	0 – 40000 W
SHORT CIRCUIT CURRENT	250 A		300 A		350 A		400 A
AC INPUT & PHYSICAL SPECIFICATIONS
AC Input/Cooling	115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
Dimensions (HxWxD)	1048 x 647 x 766 mm 41.3″ x 25.5″ x 30.2″		1201 x 647 x 766 mm 47.3″ x 25.5″ x 30.2″		1360 x 647 x 766 mm 53.6″ x 25.5″ x 30.2″		1513 x 647 x 766 mm 59.6″ x 25.5″ x 30.2″
Weight (Net)	280kg / 617.3 lbs		340kg / 749.6 lbs		390kg / 859.8 lbs		430kg / 948.0 lbs

Mainframes

Mainframe	44M01	44M02	44M04
No. of Slots	1	2	4
Supports	41L0630, 41L0660, 41L2512, 41:5012, 41L0616 42L0860, 42L0824, 42L0803 41D3024, 41D5012, 41D5024, 42D5006
Max Power	300W	600W	1200W
AC Input	100-115Vac ±10% or 200-230Vac ±10%
Frequency	50 / 60 Hz ±3Hz
Power (max.)	40W	60W	150W
Dimensions (HxWxD)	177x160x452mm 7.0×6.3×17.8″	177x269x452mm 7.0×10.6×17.8″	177x440x445mm 7.0×17.3×17.5″
Weight	5.5 kg / 12.2 lbs	7.5 kg / 16.5 lbs	9.3 kg / 20.5 lbs

每個機櫃 60kW 到

低電壓範圍，0 — — 6 伏

電壓 1000Vdc

1000 Adc 電流範圍

高速 5 位數精密計量能力

對於高功率應用程式的平行作業

緊湊的設計

可鎖腳輪移動櫃

操作模式︰ CC、 CP、 CR、 CV，CC + CV、 CP + 簡歷

太陽能電池板的開發和測試的最大功率點跟蹤模式

內置短路試驗

在當前的保護測試模式

在電源保護測試模式

靜態和動態的抄送模式

可用的介面選項包括 USB、 RS232、 gpib 介面和局域網

CE 標誌

載入的多功能性

所有 AP 5VP 系列荷載均都配備功能強大的微控制器和友好的使用者控制項，提供範圍廣泛的負載的應用程式的功能。精密計量，電流，功率和電阻是電壓的標準。

電源電源測試

詳細測試的線性和高速度開關模式交流/直流電源由可能靈活測距和寬 V-我工作曲線發現所有 5VP 系列 AP 中載入。這支援高輸送量生產測試和燒傷中的小型和大型的 ac/DC 電源供應器。

電源的設計

新的電力供應設計與內置功能，如過電流保護 (OPC) 試驗和功率保護 (OPP) 試驗和動態恒定電流波形測試，可根據設計規格可徹底的評估。類比輸入的模式允許任意的電流波形，要應用於一個單元測試以及下。

電池充電/放電測試

時間序列分析具體的放電電流水準作為電池電壓的函數允許的表徵與效能測試不同的電池化學配方。高當前的解析度和準確性 5VP 系列負載支援小型和大型電池的測試。

太陽能電池板載入

最大功率點跟蹤功能的 5VP 直流負載模擬允許測試在各種條件下的太陽能電池板太陽能逆變器的行為。
